Power Adapters

A list of devices and the power adapters that were provided with them by the manufacturer.
DeviceModelPower
Adapter Model
InputOutput
Acer
Acer Aspire One Netbook Model: 722-BZ480 (This netbook also has a model number of P1VE6 listed on a sticker on the underside of the netbook. The model number is also listed by Acer as A0722 or A0722-BZ480) Delta Electronics, Inc.
Model: ADP-40TH A (Alternate) Camera icon - 25x23 pixels

100-240V~, 50-60 Hz, 1.2A 19V Direct current symbol 2.15A
Acomdata
Acomdata 160GB 7200 RPM USB 2.0 External Drive Model: HD160U2E2-72
SKU# 25-3223
UPC: 7 08769 01057 4
Dura Micro Inc.
Model: PA-215
100-240V~, 50-60 Hz, 0.6A +5V Direct current symbol 1.5A
+12V Direct current symbol 1.8A
Altec Lansing
Altec Lansing Multimedia Computer Speaker System Model: ACS41
Altec Lansing Multimedia
Class 2 Transformer
Model: 4815090R3CT
120VAC 60Hz, 19W 15VDC 900mA
15.4VDC 800mA Powerplug positive polarity 139x48
Tip Diameter (mm): 5
Inner (mm): 2
Amazon
Kindle Model: Kindle
AC Adapter

United States
Model: A00810-02
FL P/N: FA-05-00850SUA 1050208252C
Approved U.S. charger for Kindle, Kindle Touch, Kindle Keyboard, and Kindle DX
Buy Camera icon - 25x23 pixels

Buy adapter with USB cable Camera icon - 25x23 pixels

Or use Amazon Kindle PowerFastAmazon Kindle PowerFast - newer model 53-000136 for faster charging

Europe
Model: 53-000080
The EU (European Union Universal) Kindle power adapter. Approvedi charger for Kindle, Kindle Touch, Kindle Keyboard, and Kindle DX
Buy Camera icon - 25x23 pixels

Note: to charge the Kindle, you need to connect the Kindle to the power adapter by a USB cable. The cable has "USB Type A" and "USB Micro-B" connectors (both male).

Amazon Kindle Replacement USB Cable for U.S. and EU adapters
100-240V~ 50-60Hz 0.15A

Note: specifications for U.S. adapter
5.0V Direct current symbol0.85A

Note: specifications for U.S. adapter.
Kindle Fire Model: Fire
TPT AC Adapter/Charger
Model: MII050180-U
Part Number: MII050180-U57-2G
Buy Camera icon - 25x23 pixels
100-240V~ 50-60Hz 0.3A 5V Direct current symbol1.8A
Asus
Asus Eee PC 1001PXB 1001PXB-BK301 Asus AC/DC Adapter
Model No: ADP-40PH AB
Buy
100-240V~ 1.2A 50-60Hz 19V Direct current symbol 2.1A Powerplug positive polarity 139x48
Belkin
Belkin Wireless G Router F5D7230-4
Buy
OEM® AC Adaptor
Model No: AD-041A5
120VAC 60Hz 14W 4.5VDC 1.5A Powerplug positive polarity 139x48
Belkin Connect N150 Wireless Router
Camera icon - 25x23 pixels
F7D5301 v1
UPC: 722868807316
Buy
Leader Electronics Inc. I.T.E. Power Supply
Model No: MT12-Y090100-A1
Camera icon - 25x23 pixels
120V ~ 60Hz 0.3A 9V Direct current symbol 1.0A Powerplug positive polarity 139x48
Plug tip size: 5.5/2.1 mm
Belkin N600 DB Wi-Fi Dual-Band N+ Router
Camera icon - 25x23 pixels
F9K1102V2
Buy
Belkin Switching Adapter
Model No: DSA-12PFE-12 BUS 120100
Buy comparable adapter
Camera icon - 25x23 pixels
100-120V~ 50/60Hz 0.3A +12V Direct current symbol 1A Powerplug positive polarity 139x48
Boston Acoustics
Boston Acoustics powered 3-piece speaker with MagnaGuard® magnetic shielding BA745 Camera icon - 25x23 pixels Boston Acoustics AC Adapter
M/N: AD-1202000AU
P/N: GJE-AC57-225
BA P/N: 026-000070-0 Camera icon - 25x23 pixels
120VAC 60Hz 300mA 12VAC 2000 mA (2A)
Canon
Canon Printer BJC-210, BJC-240, BJC-250, BJC-30, BJC-4100, BJC-50, BJC-55, BJC-70, BJC-80, or BJC-85 Canon
M/N: K30080 P/N: AD-320
Buy
120V~ 60Hz 450mA 13V Direct current symbol 1.8A
5.0 mm barrel connector with positive inside
Cisco
Cisco 851W Router 850
Buy:
Source #1, Source #2
Delta Electronics, Inc.
Model No: ADP-29EB A
100-240V~1A 50/60Hz +5.2V Direct current symbol 4400mA
+12V Direct current symbol560mA
Total Power: 26W
Chronos
External Enclosure for IDE HDD/CD/DVD Drive - USB 2.0 CD-509-U2 Asian Power Devices (APD), Inc.
Model No: DA-30C03
100-240V, 50/60Hz
0.85A Max. 70VA-90VA
5Vdc Direct current symbol 2.5A
12Vdc Direct current symbol1.5
L.P.S. (Limited Power Source)
Compaq (acquired by HP)
Compaq Presario 1610 Series 2940 laptop 1610 2902 - Buy
Replace only with Compaq Spares 293787-001
100-240V 50/60 Hz 1.2A 18.6V Direct current symbol 2.8A
Coolmax
Gemini CD-309 Series 3.5" HDD Aluminum External Enclosure - IDE to USB 2.0 CD-309-U2 Camera icon - 25x23 pixels Achme Corp.
Model No: AM138B12S20
Buy
100-240Vac, 0.6A, 50-60Hz 12Vdc, 1.7A
ITE Power Supply
D-Link
D-Link 8-Port Hub DE-809TC YNG YUHA
Model No: YP-040
Buy
120V AC 60Hz 15W 7.5V DC 1A Powerplug positive polarity 139x48
D-Link 5-Port 10/100 Desktop Switch DES-1105
Buy
Jentec Technology Co., Ltd.
Model No: AF0605-B
100-120V~ 0.15A, 50-60Hz +5V/1.2A
D-Link 8-Port 10/100 Desktop Switch DES-1108
Buy
Jentec Technology Co., Ltd.
Model No: AF0605-B
100-120V~ 0.15A, 50-60Hz +5V/1.2A
D-Link 5-Port 10/100/1000 Desktop Switch DGS-2205
Buy
Jentec Technology Co., Ltd.
Model No: AF0605-B
100-120V~ 0.15A, 50-60Hz +5V/1.2A
D-Link 2-Port KVM Switch DKVM-2
Buy
JOD-41U-30 AC 120V 60Hz 96mA DC 9V 600mA Powerplug positive polarity 139x48
Dell
Dell FlatPanel Soundbar AX510PA DVE Switching Power Adapter
Model No.: DSA-15P-12 US 120120
100-240V~ 50/60 Hz 0.5A 40VA +12V Direct current symbol 1A Powerplug positive polarity 139x48
Dell Inspiron 17R Notebook (Inspiron 5720) 17R-5720
Model No.: HA65NS5-00 UP/N A065R039L
DP/N: 09RN2C Buy
100-240V~ 1.7A 50-60 Hz 65W 19.5V Direct current symbol3.34A Powerplug positive polarity 139x48
Dell Inspiron 4000 PP01L PA-6 Family
Model No.: ADP-70EB P/N 9364U
DP/N: 09364U Buy
100-240V~ 1.5A 50/60 Hz 70W 20V Direct current symbol3.5A
Dell Inspiron 6000 PP12L 90W-AC Adapter PA-10 Family
Model No.: PA-1900-02D2 DP/N: U7809
Buy
100-240V~ 1.5A 50/60 Hz 19.5V 4.62A
Dell Inspiron E1705 PP05XB
Buy
90W-AC Adapter PA-10 Family (PA-1900-01D3)
Model No.: LA90PS0-00 DP/N: DF266
Buy
100-240V~ 1.5A 50/60 Hz 19.5V 4.62A
Dell Latitude D505 PP10L (for use with adapter PA-10 or PA-12) 65W-AC Adapter PA-12 Family
Model No.: PA-1650-05D DP/N: 5U092
Liteon Technology Corporation
Buy
100-240V~ 1.5A 50/60 Hz 19.5V 3.34A Powerplug positive polarity 139x48
Dynex
Dynex External USB 3.5" Drive Enclosure DX-HDEN10
Buy
SINCHO SW34-1202A02 Voltage : 100VAC to 240VAC 1.2A
Frequency : 47Hz to 63Hz
Input current : 90V, 50Hz / 1.5Amp(rms)
Inrush Current : 60Amps (peak to peak) cold start At 230VAC Condition
+5VDC / +1 2VDC 2A 34W
Dynex USB 3.0 3.5" SATA Hard Drive Enclosure DX-HD303513
Buy
Enertronix Model: EXA0606UB Voltage : AC 100-240V, 50-60Hz, 0.8A +12V Direct current symbol 2A
Powerplug positive polarity 139x48
eMachines
eMachines eM250 Netbook KAV60
Camera icon - 25x23 pixels
LITE-ON
Model No: PA-1300-04
Buy
100-240V~, 50-60Hz, 1.0A 19V Direct current symbol 1.58A
Powerplug positive polarity 139x48
Fantom Drives
Fantom Drives Titanium FireWire 160 GB Hard Drive 7200rpm TFDF16072
Camera icon - 25x23 pixels
Dura Micro Inc.
Model No: 0314C0225
Buy
100-240V~, 50-60Hz, 1.2A 5V Direct current symbol 2A
12V Direct current symbol 1.2A
Gateway
Gateway MX3215 Notebook
(the system has 2 model numbers on the underside: MX3215 and W323-UI1)
W323-UI1 Li Shin International Enterprise Corp.
Model: 0335C1965
Buy
100-240V~ - 1.7A 50/60 Hz 19V Direct current symbol 3.42A Powerplug positive polarity 139x48
Hewlett Packard (HP)
HP Pavilion dv6 laptop dv6-1030us
Buy
HP Part No. 463552-004
Replace with HP Spare: 463958-001
100-240V~ 1.7A 50/60 Hz 18.5V Direct current symbol 3.5A 65W Powerplug positive polarity 139x48
HP Pavilion dv9000 laptop dv9308nr
Part number: RU974UA#ABA
PA-1900-08R1
HP Part No. 393954-001
Replace with HP Spare: 394224-001
Buy
100-240V~ 1.5A 50/60 Hz 19V Direct current symbol 4.74A Powerplug positive polarity 139x48
HP Pavilion N5130 laptop N5130 F1454A
Buy
100-240V~ 1.8A 50/60 Hz 19V Direct current symbol 3.16A Powerplug positive polarity 139x48
HP Compaq tc4400 laptop HSTNN-C02C
Buy
HP Part No. 384019-002
Replace with HP Spare: 391172-001
HP-OK065B13 LF SE
Buy
100-240V - 1.7A 50/60 Hz 18.5V Direct current symbol 3.5A 65W
HP Deskjet 6940 Printer C8970A
Regulatory Model Number: VCVRA-0511
Buy
0957-2105
For use with IEC 60950 Products Only
Buy
100-240V~ 50/60 Hz 1500mA +32V Direct current symbol 1560mA
HP Deskjet D4260 Printer CB637A 0957-2231 100-240V~ 50/60 Hz 600mA +32V Direct current symbol 375mA
+16V Direct current symbol 500mA
HP Officejet 7500A Wide Format Printer C9309A B1H Option
Buy
0957-2271
Cable from adapter to power outlet:
LS-7C
7A125V
LINETEK
E70782
100-240V~ 50/60 Hz 1300mA +32V Direct current symbol 1560mA
LPS
Hitachi
Hitachi External 2 TB USB 2.0 Disk Drive Model LS-2000-US
Review
Manufacturer: SunFone
Model: ACW018A3-12U 1 x 1 pixel image Camera icon - 25x23 pixels
100-240V~ 50-60Hz 0.8A 12V Direct current symbol 1.5A
Insignia
Insignia 3-Piece Speaker System NS-3006 Insignia ITE Power Supply
Model: U090100A30
120VAC 60Hz 0.15A 9VAC 1000mA
Juniper Networks
Juniper NetScreen-5XP Firewall NS-5XP-101
Buy
Group West
Model: AUA-05-1600
100V-240V~ 50-60Hz/0.3A 5V Direct current symbol 1600mA
Powerplug positive polarity 139x48
Linksys
Linksys 5-Port 10/100 Workgroup Switch EFAH05W ver 2.0
Buy
ITE Power Supply
Note: there is a "Model No." and also a "Model" on the power adapter
Model No. AD 7.5/7
P/N: PSA12D7P5P7-A
Model: MKD-4175700
120V AC 60Hz 0.15A 7.5V DC 700mA Powerplug positive polarity 139x48
Linksys 5-Port 10/100 Workgroup Switch EZXS55W
Buy
I.T.E. Power Supply
Model No: D75-07A-950
P/N: PSAS3-7HP70C-AM1HK
120V 60Hz 10W 100mA 7.5VDC 700mA Powerplug positive polarity 139x48
Linksys 5-Port 10/100 Workgroup Switch EZXS55W ver 4.1
Buy
DVE® Switching Adapter
Model No: DSA-9W-09 FUS 075070
P/N: GPSESU-7HP70E-AM1DV
100-240~ 50/60Hz 0.3A 7.5VDC 700mA Powerplug positive polarity 139x48
Linksys EtherFast® 10/100 8-Port Workgroup Hub EFAH08W Version 3.0
Buy
Model No: AD 9/8
P/N: PSA9P8-AM-H-LK
Buy
120VAC 60Hz 25W 9VDC 800mA Powerplug positive polarity 139x48
Linksys EtherFast® 10/100 8-Port Workgroup Switch EZXS88W Version 3.1
Buy
Model No: AD 9/8
Plug In Class 2 Transformer
P/N: PSA9P8-AM-H-LK
Buy
120VAC 60Hz 25W 9VDC 800mA Powerplug positive polarity 139x48
Linksys (Cisco) Wireless-G Broadband Router WRT54G
Buy
Linksys (Cisco Systems)
AD5V/2.0A
Model No.: M1-10S05
Buy
100-120V~ 0.5A, 47-63Hz +5.0V Direct current symbol Powerplug positive polarity 139x48
Barrel power jack
Linksys (Cisco) Wireless-G Broadband Router WRT54G2 V1
Buy
Linksys (Cisco Systems)
Model No: AD12V/0.5A-SW
Buy
100-240V~ 0.5A, 50-60Hz +12V Direct current symbol 0.5A MAX Powerplug positive polarity 139x48
Linksys (Cisco) PrintServer for USB with 4-Port Switch PSUS4
Buy
Linksys (Cisco Systems)
Model No: AD 5/2C
I.T.E. Power Supply Model No: M1-10S05
Buy
100-120V ~ 47.-63Hz 0.5A 5.0VDC 2.0A Powerplug positive polarity 139x48
Linksys (Cisco) Wireless-G MFP Print Server WPSM54G V1.1
Buy
Linksys (Cisco Systems)
Model No: AD 5/2C
I.T.E. Power Supply Model No: MT10-1050200-A1
100-120V ~ 50-60Hz 0.5A DC5.0V 2.0A Powerplug positive polarity 139x48
Memorex
Memorex 20X DVD Recorder MRX-530LE
Part # 3202 3223
Buy
FlyPower™
Model: SPP34-12.0/5.0-2000
100V-240V~ 50-60Hz 1.0A 12.0V Direct current symbol 2000mA
5.0VDirect current symbol 2000mA
Motorola
Motorola Set-top Box DCX3510/F080/012/500
F/G No.: 584145-001-00
12V 32W
LiteOn AC Adapter
Model: PA-1320-01C-ROHS
Part No.: 524475-024/054
For use with Motorola DCX Products
100-127V~ 0.8A 50-60Hz 12V DC Direct current symbol 2.67A
Powerplug positive polarity 139x48
    Alternate AC Adapter:
Delta Electronics, Inc. AC Adapter
Model: EADP-32BB A
MOT P/N: 524475-017 ; 524475-025 Camera icon - 25x23 pixels
100-127V~ 1A 60Hz 12V DC Direct current symbol 2.67A
Powerplug positive polarity 139x48 LPS
Motorola Surfboard Cable Modem SB5120
Part # 505808-007-00
Buy
LiteOn
Model: PB-1090-1L1
Buy: 1, 2 Camera icon - 25x23 pixels
120V AC 60Hz 0.3A 12V DC Direct current symbol 7500mA
Powerplug positive polarity 139x48
Netgear
NETGEAR® ProSafe 16 Port 10/100 Switch FS116
Buy
NETGEAR® Switching Adapter
Model No: DSA-12R-12 AUS 120120
P/N: 332-10006-01
100-120VAC 50-60Hz 0.3A +12V Direct current symbol 1A Powerplug positive polarity 139x48
Netopia
Netopia DSL Router R7200-T Sceptre®
Product No: PD1215APM8
Class 2 Transformer
Buy: Source #1, Source #2
120VAC 60Hz 31W 12VDC 1.5A
Nintendo
Nintendo Wii
Buy
RVL-001 RVL-002
Buy
120V 53W 60Hz 12V 3.7A
Runtop Inc.
Runtop 9-Port Workgroup Hub with SparkLights EZHub9 (FCC ID: KFYPEH9) ITE Power Supply
Model: MKD-4175700
120V AC 60Hz 7.5V DC 700mA Powerplug positive polarity 139x48
Schwinn
Schwinn Recumbent Exercise Bike Model: 206 Ahead AC Adaptor
Class 2 Transformer Model: DB-0900500
120V, 60 Hz, 9W DC 9V 500mA
Powerplug positive polarity 139x48
Seagate
Seagate External 160 USB 2.0 Drive Model ST316023U2-RK
PN: 9BD862-560
Li Shin International Enterprise Corp.
Model: 0322B1224
100-240V~, 50-60 Hz, 1A 12V Direct current symbol 2.0A
Powerplug positive polarity 139x48
Seagate External 300 GB 1394/USB 2.0 Drive Model ST3300601CB-RK (ST3300601CBRK)
PN: 9Y7865-560
Asian Power Devices Inc.
Model: DA-36G12
100-240V~, 50-60 Hz, ~0.9A Max 12Vdc Direct current symbol 3A
Powerplug positive polarity 139x48
Seagate Free Agent 500 GB External USB 2.0 Drive PN: 9NK2AL-510 Asian Power Devices Inc.
Model: WA-24C12U
Buy
100-240V~, 50-60 Hz, 0.55A Max, 50VA-80VA 12Vdc Direct current symbol 2A
Powerplug positive polarity 139x48
Seagate Free Agent GoFlex Desk External 1 TB USB 2.0 Drive Model STAC1000100
PN (on box): 9ZQ2N1-570
PN (on external case): 9ZH9P9-RAA
Buy
Asian Power Devices Inc.
Model: WA-24E12FC
Buy
100-240V~, 50-60 Hz, 0.65A Max 12V Direct current symbol 2A
L.P.S (Limited Power Source)
Powerplug positive polarity 139x48
Seagate External 1.5 TB USB 2.0 Desktop Drive Model ST315005EXA101-RK
PN (on box): 9SE2A6-570
PN (on external case): 9SF2A6-500
Buy
Asian Power Devices Inc.
Model: WA-24E12
Buy
100-240V~, 50-60 Hz, 0.65A Max 51-80VA +12V Direct current symbol 2A
Powerplug positive polarity 139x48
Seagate FreeAgent GoFlex Desk 2 TB USB 3.0 Drive Model: STAC2000103
PN (on box): 9ZQAN1-570
PN (on external case): 9ZH9P7-RAA
Buy
Asian Power Devices Inc.
Model: WA-24E12FU
Buy
100-240V~, 50-60 Hz, 0.65A Max +12V Direct current symbol 2A
Powerplug positive polarity 139x48
Seagate FreeAgent GoFlex Desk 3 TB USB 3.0 Drive Model: STAC3000101
PN (on box): 9ZQAN2-570
PN (on bottom of external case): 100626970
Buy Camera icon - 25x23 pixels
Asian Power Devices Inc.

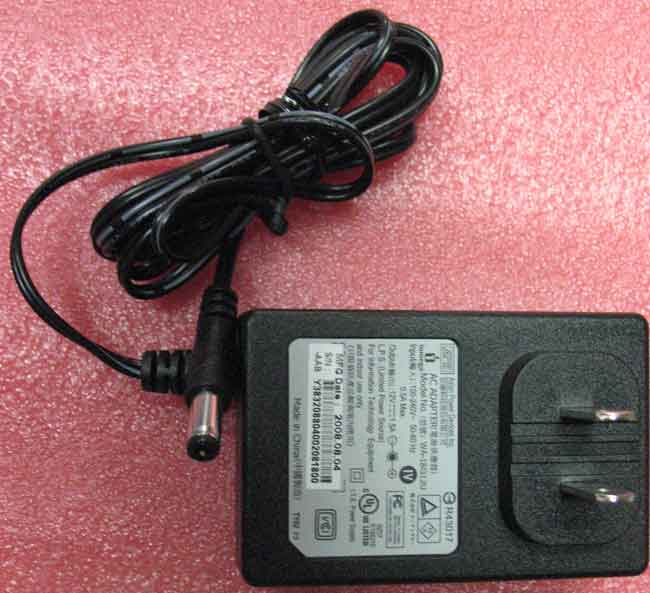

Model: WA-18G12U
Buy Camera icon - 25x23 pixels
100-240V~, 50-60 Hz, 0.5A Max 12V Direct current symbol 1.5A
Powerplug positive polarity 139x48
Seagate Backup Plus 4 TB USB 3.0/2.0 Desktop Drive Model (on box): STCA4000100
Model (on drive): SRD0SD0
PN (on box): 1DXAN5-570
PN (on back of external case): 1DXAP4-500
Buy Camera icon - 25x23 pixels
Asian Power Devices Inc.
Model: WA-18Q12FU
Buy

Note: I have found 2 different power adapters shipped with this drive: WA-18Q12FU and ADS-18E-12N 12018GPCU; see below.
100-240V~, 50-60 Hz, 0.5A Max 12V Direct current symbol 1.5A
Powerplug positive polarity 139x48
Seagate Backup Plus 4 TB USB 3.0/2.0 Desktop Drive Model (on box): STCA4000100
Model (on drive): SRD0SD0
PN (on box): 1DXAN5-570
PN (on back of external case): 1DXAP4-500
Buy Camera icon - 25x23 pixels
Asian Power Devices Inc.
Model: ADS-18E-12N 12018GPCU
Buy

Note: I have found 2 different power adapters shipped with this drive: WA-18Q12FU and ADS-18E-12N 12018GPCU; see above.
100-240V~, 50-60 Hz, 0.6A Max 12V Direct current symbol 1.5A
Powerplug positive polarity 139x48
Seagate Backup Plus 5 TB USB 3.0 Desktop Drive Model (on box): STDT5000100
Model (on drive): SRD00F2 (listed as "Regulatory Model" on box
PN (on box): 1KBAA4-570
PN (on external case): 1KBAP4-500
Buy Camera icon - 25x23 pixels
Shenzhen Honor Electronic Co., LTD.
Model: ADS-18E-12N 12018GPCU
Buy
100-240V~, 50-60 Hz, 0.6A Max 12V Direct current symbol 1.5A
Powerplug positive polarity 139x48
SimpleTech
SimpleTech SimpleDrive® 160 GB USB 2.0 External Disk Drive Model CC-USB235/160
(BOM #: 91000-40479-040)
Buy
Model: SYS1298-1812-W2
Part No: SYS1298-1812L-C
Buy
100-120V~1.0A MAX 30-40VA, 50-60 Hz +12V Direct current symbol 1.5A
Output Power: 18W MAX. Powerplug positive polarity 139x48
SimpleTech External 500 GB USB 2.0 Disk Drive Model SP-U35/500
(BOM #: 96300-41001-013)
Buy
Model: SYS1298-1812-W2
Part No: SYS1298-1812P-W2
Buy
100-240V~1.0A MAX 50-60 Hz +12V Direct current symbol 1.5A
Output Power: 18W MAX. Powerplug positive polarity 139x48
SimpleTech External 500 GB USB 2.0 (re) drive P/N: R500U
(BOM #: 96300-41001-140)
Model: SYS1308-2412-W2
Part No: SYS1308-1812-W2-C
Buy
100-240V~1.0A MAX 50-60 Hz +12V Direct current symbol 1.5A
Output Power: 18W MAX. Powerplug positive polarity 139x48
Thermaltake
Thermaltake BLACX Black Widow 2.5"/3.5" SATA HDD eSATA & USB Docking Station ST0005U
Buy
SPS24-12.0-2000 100-240V~ 50/60 Hz 1.0A 12.0V Direct current symbol 2A Powerplug positive polarity 139x48
Thermaltake BLACX Black Widow 2.5"/3.5" SATA HDD eSATA & USB Dual Hard Drives Docking Station ST0014U
Buy
CS-1203000 100-240V~ 50/60 Hz 12V Direct current symbol 3A Powerplug positive polarity 139x48
Toshiba
Toshiba Satellite M45-S355 Laptop PSM40U-073001 Lite-On PA-1750-07
Toshiba Part No: PA3283U-2ACA PA3283E-2ACA
Buy
100-240V~ 50/60 Hz 1.5A 15V Direct current symbol 5A Powerplug positive polarity 139x48
Toshiba Satellite C655-S5305 Laptop PSC2EU-02Y02H
Buy
Toshiba Part No: PA3714U-1ACA
Buy
100-240V~ 50/60 Hz 1.5A 19V Direct current symbol 3.42A Powerplug positive polarity 139x48
Toshiba Satellite C655D-S5303 Laptop PSC0YU-01303X
Buy
Toshiba Part No: PA3822U-1ACA
Buy
100-240V~ 50/60 Hz 1.3A 19V Direct current symbol 2.37A Powerplug positive polarity 139x48
Umax
Umax Astra 6400 Scanner Astra 6400
Buy
Touch Electronic Co., Ltd
Model: SA0612-A
UDS P/N: 68300061-0000
100-240V~ 50/60 Hz 0.8A 12.0V Direct current symbol 1.7A Powerplug positive polarity 139x48
Verbatim
Verbatim External 1 TB USB 2.0 Disk Drive Model USB1TB
(Lot #: SH9909)
Buy
Manufacturer: SunFone
Model: ACW024A-12U
P/N: GPC-AC2024A-12U
100-240V~ 50-60Hz 0.8A 12V Direct current symbol 2A Powerplug positive polarity 139x48
Verbatim External 1 TB USB 2.0 Disk Drive Model USB1TB
Verbatim # 96571   0903-350
(Lot #: SH9Z11)
Buy
Manufacturer: SunFone
Model: ACW024A-12U
P/N: GPC-ACW024A-12U
100-240V~ 50-60Hz 0.8A 12V Direct current symbol 2A Powerplug positive polarity 139x48
Verbatim External 2 TB USB 2.0 Disk Drive Model USB2TB
Verbatim # 96865
Buy
Manufacturer: SunFone
Model: ACW018A3-12U 1 x 1 pixel image Camera icon - 25x23 pixels
100-240V~ 50-60Hz 0.8A 12V Direct current symbol 1.5A
Vivitar
Vivitar ViviCam 8025 8.1MP HD Super-slim Digital Camera with 2.4-Inch TFT LCD 8025
Buy Camera icon - 25x23 pixels
BI Switching Power Supply Model: BI05-050060-BdU
Buy
100-240V~ 50/60Hz 0.3A DC 5V Direct current symbol 600mA
Western Digital
Western Digital External 120 GB USB 2.0 Disk Drive Model WD1200B015
(Order #: WDXUB1200BBNN )
Asian Power Devices (APD), Inc. Model: DA-24B12
Buy
100-240Vac 0.65A Max. 47~63 Hz 12Vdc Direct current symbol 2A Powerplug positive polarity 139x48
Western Digital External 500 GB USB 2.0 Disk Drive WD500C032-002
How to Open
ADS-24S-1224GPCU
Buy
100-240V 50/60 Hz 12V Direct current symbol 2A Powerplug positive polarity 139x48
Western Digital My Book External 500 GB USB 2.0 Disk Drive Model and WD P/N: WD5000H1U-00
(Order: WDH1U5000N)
Buy
How to Open
ADS-24S-12 1224GPCU
Buy
100-240V~ 50/60 Hz 12V Direct current symbol 2A Powerplug positive polarity 139x48
Western Digital My Book Essential Edition External 640 GB USB 2.0 Disk Drive Model and WD P/N: WD6400H1U-00
(Order: WDH1U6400N)
Buy
Asian Power Devices Inc.
WA-18G12U
100-240V~ 50/60 Hz 0.5A Max 12V Direct current symbol 1.5A Powerplug positive polarity 139x48
Western Digital External 750 GB USB 2.0 Disk Drive WD7500C032-002 ADS-24S-1224GPCU
Buy
100-240V 50/60 Hz 12V Direct current symbol 2A Powerplug positive polarity 139x48
Western Digital My Book 1 TB External USB 2.0 Disk Drive WD10000H1U-00
Buy
ADS-24S-12 1224GPCU
Buy
100-240V~ 50/60 Hz
max. 700mA 50VA
12V Direct current symbol 2A Powerplug positive polarity 139x48
Western Digital My Book Mirror Edition 2 TB External USB 2.0 Disk Drive Model: WD20000H2U-00
Order: WDH2U20000N
Buy
WA-36A12U 100-240V~ 50/60 Hz
0.9A Max.
12V Direct current symbol 3A Powerplug positive polarity 139x48
WD Elements 2 TB External USB 2.0 Disk Drive Model: WDBAAU0020HBK-NESN
P/N: WDBAAU0020HBK-01
Buy
Asian Power Devices Inc.
WA-18G12U
(This equipment shall be used at maximum 40°C ambient temperature)
100-240V~ 50/60 Hz
0.5A Max.
12V Direct current symbol 1.5A Powerplug positive polarity 139x48
WD My Book 2 TB USB 3.0 + USB 2.0 Disk Drive Model: WDBACW0020HBK-NESN
P/N: WDBACW0020HBK-01
Buy
Ktec
KSAS0241200150HU
Buy replacement Camera icon - 25x23 pixels
100-240V~ 50/60 Hz 35-42VA 0.6A 12V Direct current symbol 1.5A Powerplug positive polarity 139x48
WD Elements 3 TB External USB 3.0 + USB 2.0 Hard Drive Model: WDBACW0030HBK-NESN
P/N: WDBACW0030HBK-00
Buy
Asian Power Devices Inc.
WA-18G12U
(This equipment shall be used at maximum 40°C ambient temperature)
100-240V~ 50/60 Hz
0.5A Max.
12V Direct current symbol 1.5A Powerplug positive polarity 139x48
WD My Book Essential 3 TB External USB 3.0 + USB 2.0 Hard Drive Model: WDBACW0030HBK-NESN
P/N: WDBACW0030HBK-01
Buy
Asian Power Devices Inc.
WA-18G12U
(This equipment shall be used at maximum 40°C ambient temperature)
100-240V~ 50/60 Hz
0.5A Max.
12V Direct current symbol 1.5A Powerplug positive polarity 139x48
WD My Book 4 TB External USB 3.0 Hard Drive Model: WDBFJK0040HBK-NESN
P/N: WDBFJK0040HBK-04
Buy
Ktec
KSAS0241200150HU Camera icon - 25x23 pixels
100-240V~ 50/60 Hz 35-42VA 0.6A 12V Direct current symbol 1.5A Powerplug positive polarity 139x48
Symbols
Direct Current Direct current symbol
Center (tip) Positive Powerplug positive polarity 277x95
Center (tip) Negative Powerplug negative polarity 277x95


All-in-One Travel Power Plug Adapter for US, UK, EU, AU

The polarity symbol, either center positive or center negative, indicates if the center, or tip, of the output plug is positive (+) or negative (-). The power adapter must have the same polarity as the device to which it is connected to avoid damage to the device.

References:

  1. Power Supply Units Abbreviations and Symbols
    Access Communications Pty Ltd

250x300 Logo

Valid HTML 4.01 Transitional
